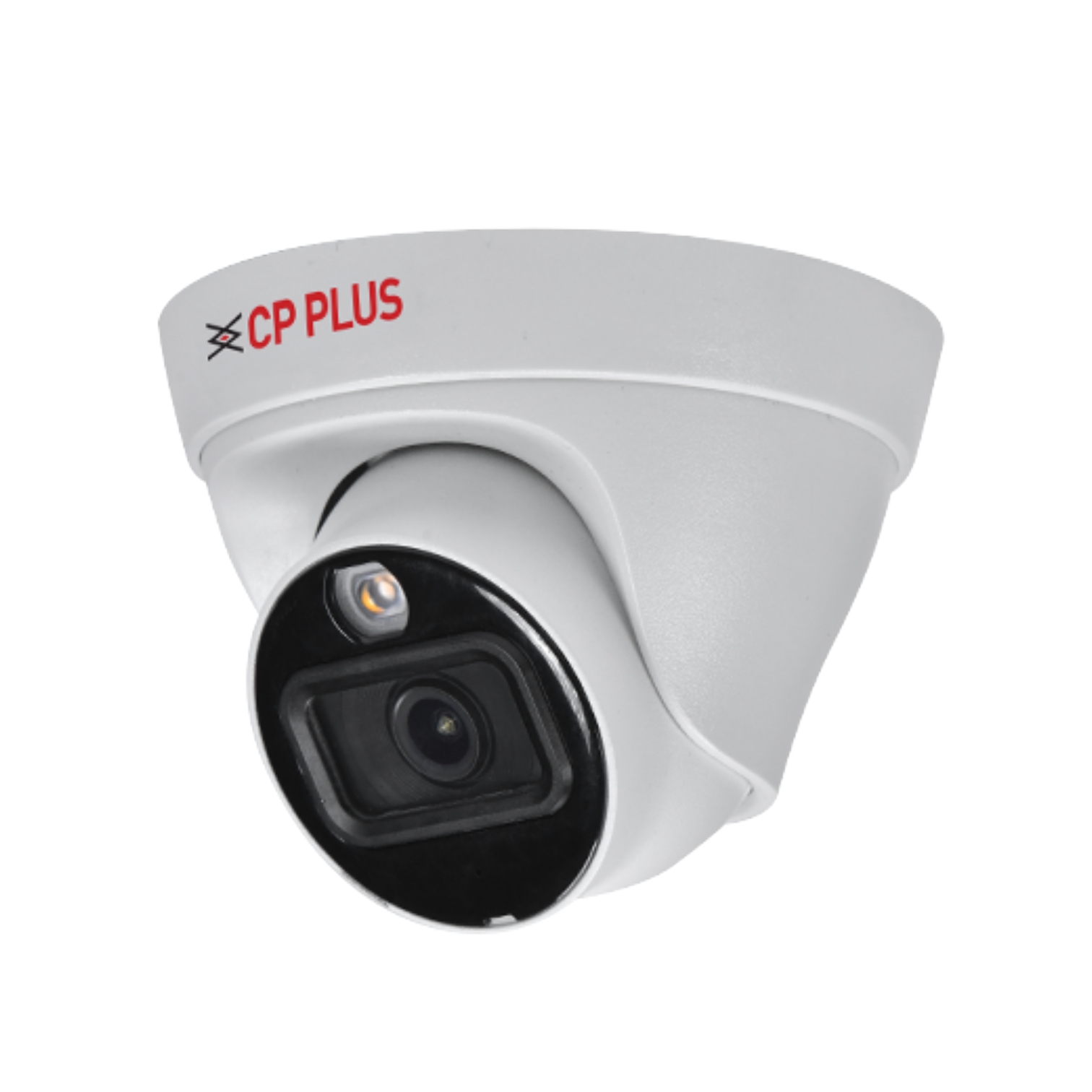

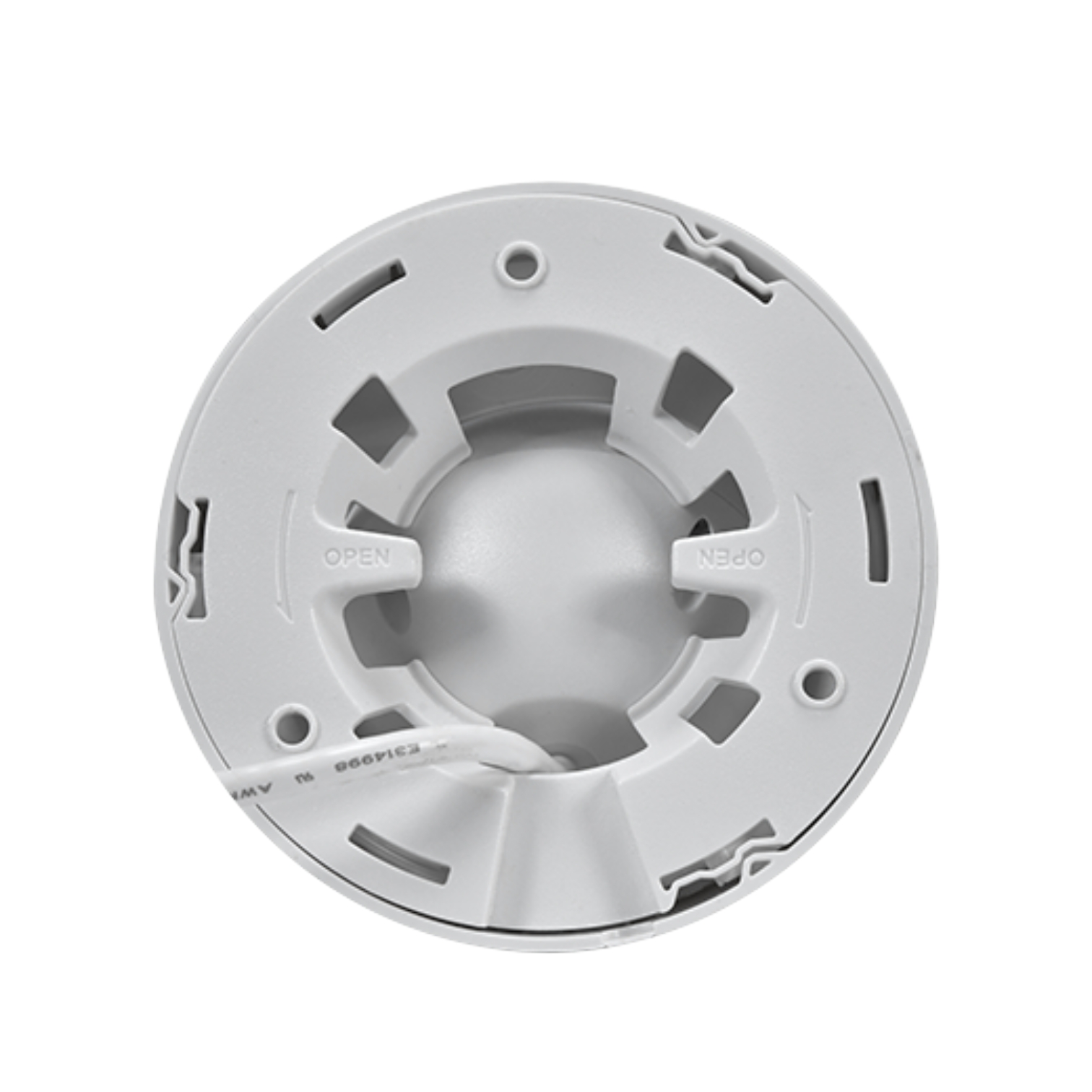

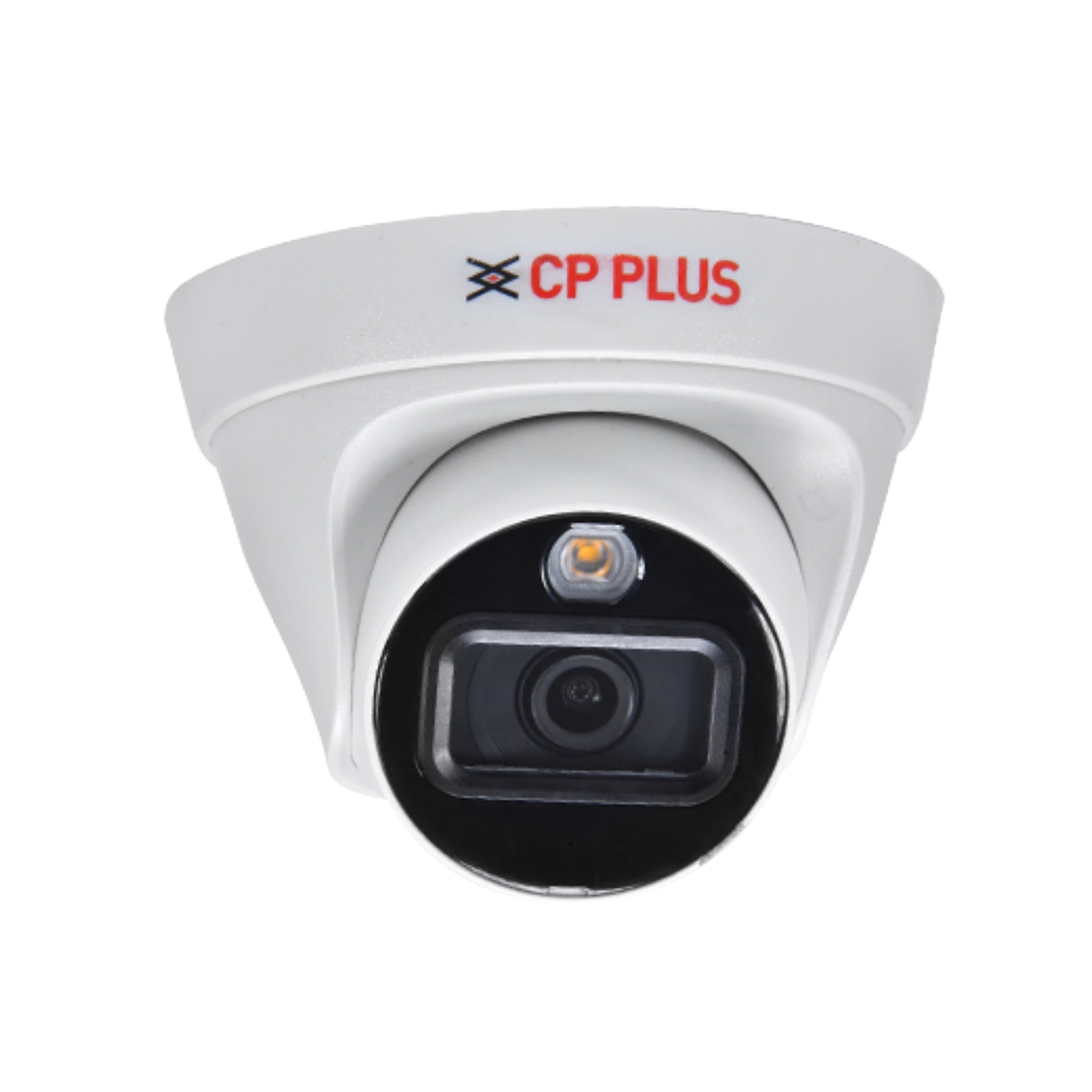

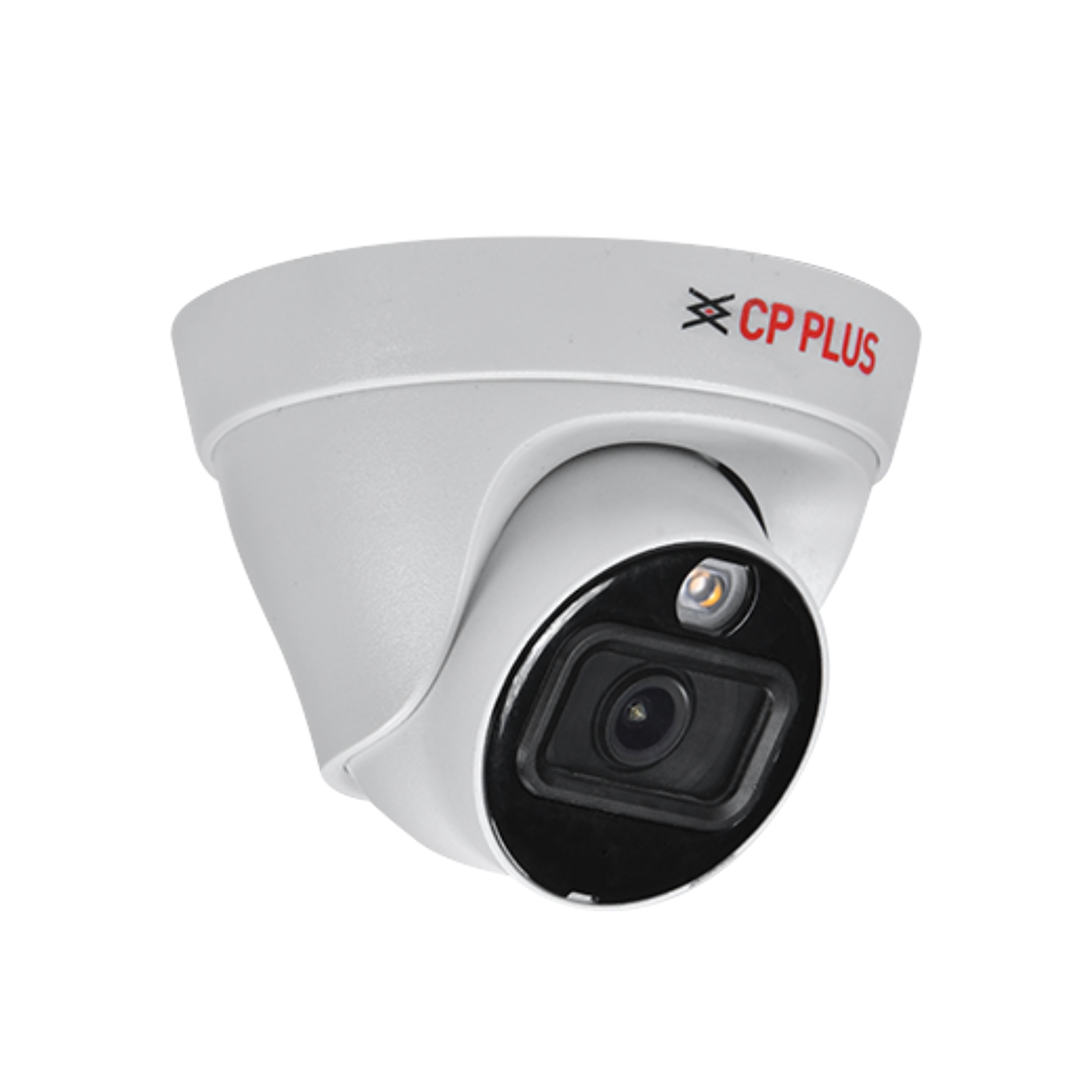

CP PLUS 4MP IP Dome Camera CP-UNC-DA41L3C-D-LQ

Image Sensor 1/2.9 Effective Pixels 2688(H) × 1520(V) Minimum Illumination 0.06 lux@F1.6 (Color, 30 IRE), 0.006 lux@F1.6 (B/W, 30 IRE), 0 lux (IR on) Angle Adjustment Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360° Shutter Speed Auto/Manual 1/3 s–1/100,000 s White Balance Auto, Natural, Street lamp, Outdoor, Manual, Regional custom RAM 128 MB ROM 128 MB DORI Distance 85.4 m (Detect), 34.2 m (Observe), 17.1 m (Recognize), 8.5 m (Identify) Gain Control (AGC) Auto/Manual Lens Type Fixed-focal Max. Aperture F1.6 Day/Night Auto(ICR)/Color/B/W Lens Mount M12 Close Focus Distance 1.7 m Lens 3.6mm fixed Lens S/N Ratio >54dB Angle of view H: 78°, V: 40°, D: 93° Back Light Compensation BLC/ HLC/ DWDR IR Number 1 (Multi-core (IR + warm) light) IR IR Range of 30 Mtr. Smart IR Support Stream Capability Triple stream Frame Rate Main stream: 4MP (2688 × 1520)@1-25/30fps/ (2560 × 1440)@1-25/30 Sub stream 1: 720p( 1280 × 720), D1 (704 × 576)@1–25 fps/ (704 × 480)@1–30fps, VGA(640 × 480)@1-30fps, CIF (352 × 240)@1-30fps, (352 × 288)@1-25fps Sub stream 2: D1 (704 × 576)@1–25fps/ (704 × 480)@1–30 fps, VGA(640 × 480)@1-30fps, CIF (352 × 240)@1-30fps/ (352 × 288)@1-25fps Video Compression Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream) Resolution 4MP (2688 x 1520)/ (2560 × 1440), 3MP (2304 × 1296), 2MP (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576/ 704 × 480), VGA (640 × 480), CIF (352 × 288/ 352 × 240) Smart search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos Noise Reduction 2D NR Video Format PAL/NTSC Privacy Masking 8 areas ROI Support (4 areas) OSD Camera title, Date & Time Audio Compression G.711a, G.711Mu, PCM, G.726, AAC Protocol FTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, ICMP, IGMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), unicast, multicast SDK and API Support Ethernet RJ-45 (10/100 Base-T) Alarm Event Network disconnection, IP conflict, illegal access, Motion detection, Video tampering, Audio detection, IMD (Intelligent motion detection), Security exception Cyber Security AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot Mirror Function Support IR Control Auto, Manual Iris Control Fixed Image Rotation 4MP only support 0°/180° 2MP & lower will support 0°/90°180°/270° Bit Rate Control CBR/VBR Bit Rate H.265: 3 kbps-6144 kbps, H.264: 8 kbps-6144 kbps User/ Host 6 (Total bandwidth: 36 M) Browser IE, Chrome, Firefox Weatherproof Standard IP67 Certificates ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report Power Source 12 VDC/PoE (802.3af) Power Consumption Basic: 1.6 W (12 VDC), 2.0 W (PoE) Max. : 3.7 W (12 VDC), 4.7 W (PoE) (H.265 + intelligence on + DWDR+ warm light intensity) Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F) Operating Humidity ≤95% (RH), non-condensing Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F) Storage Humidity ≤95% (RH), non-condensing Dimension 85.5 mm × 109 mm Casing Metal + Plastic Weight 250g
