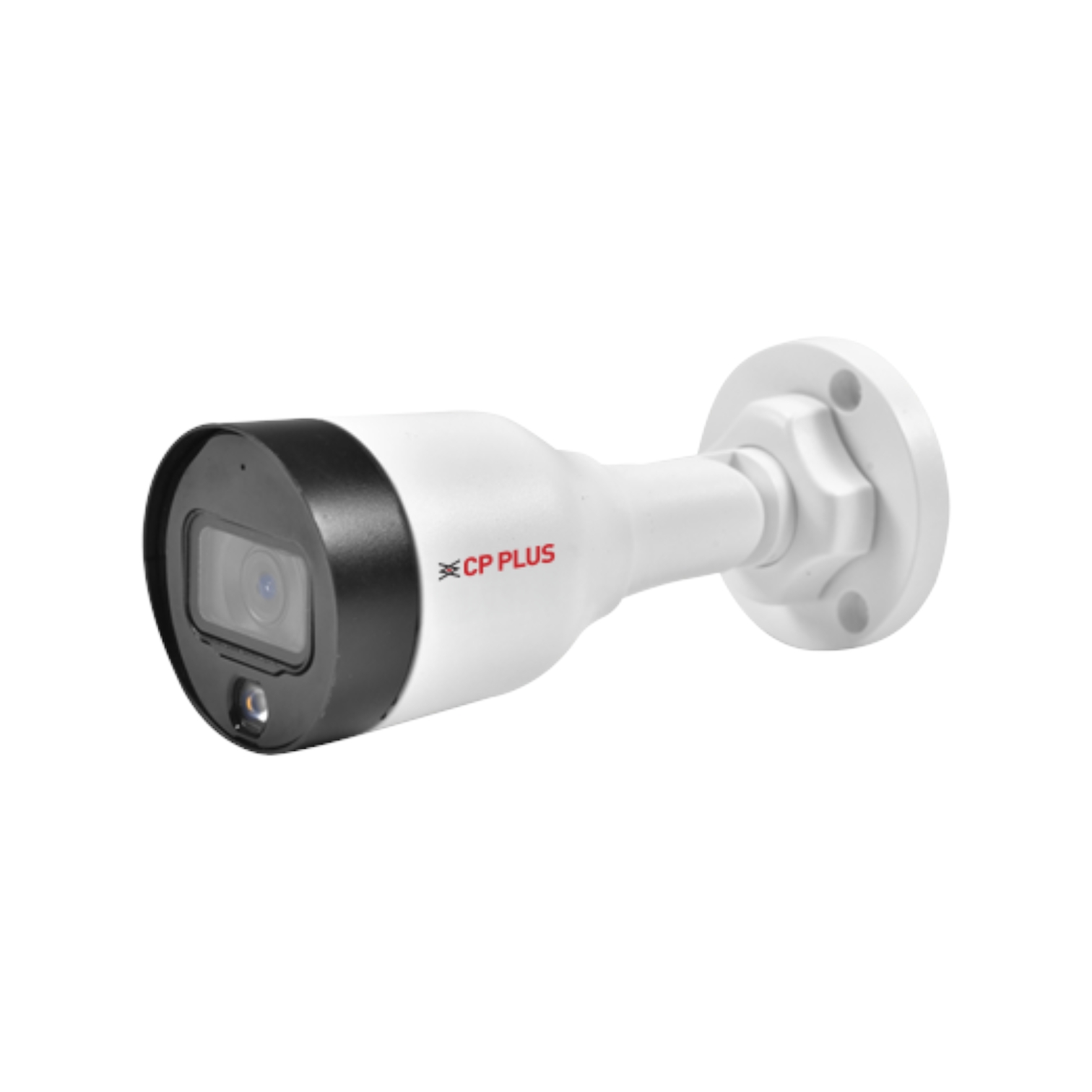

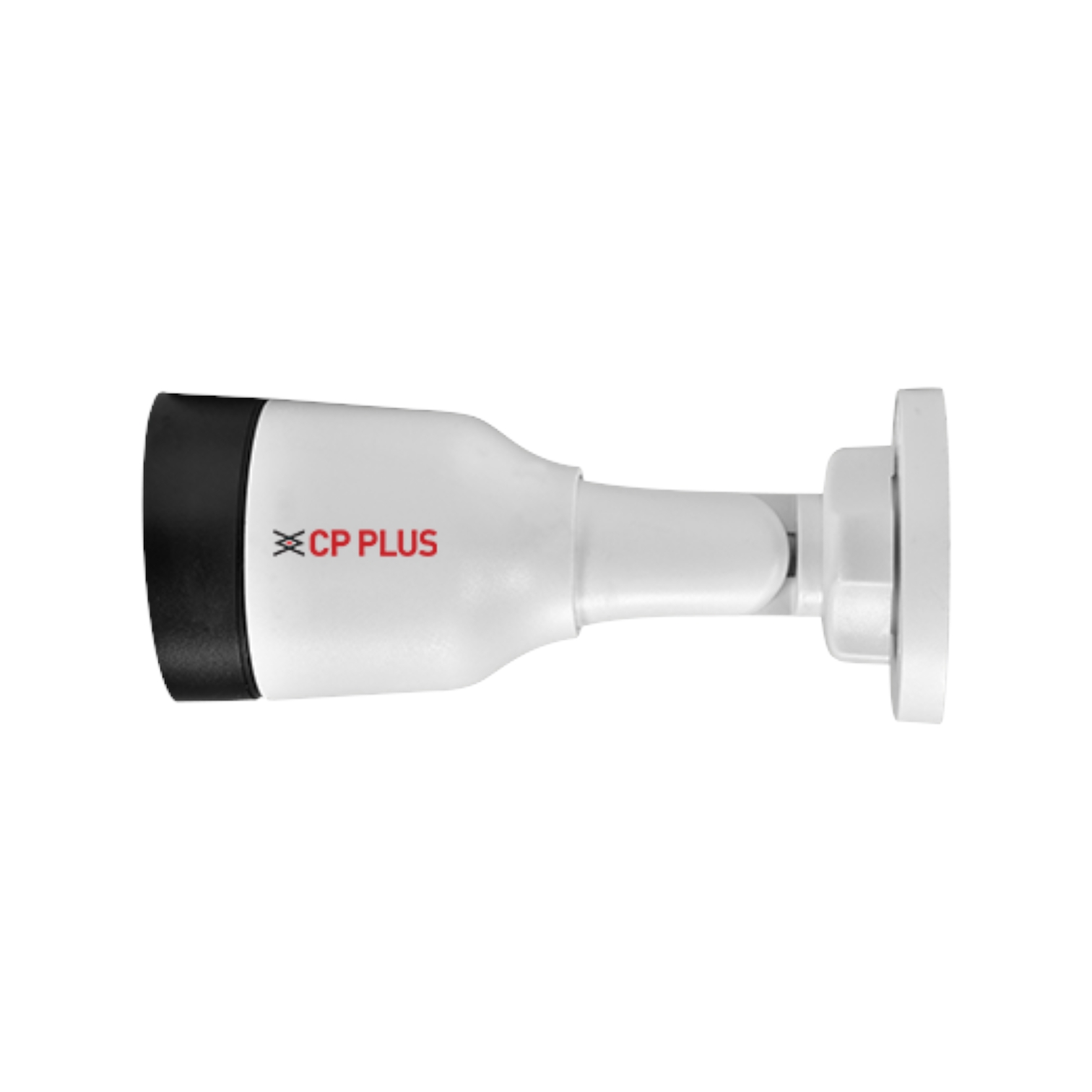

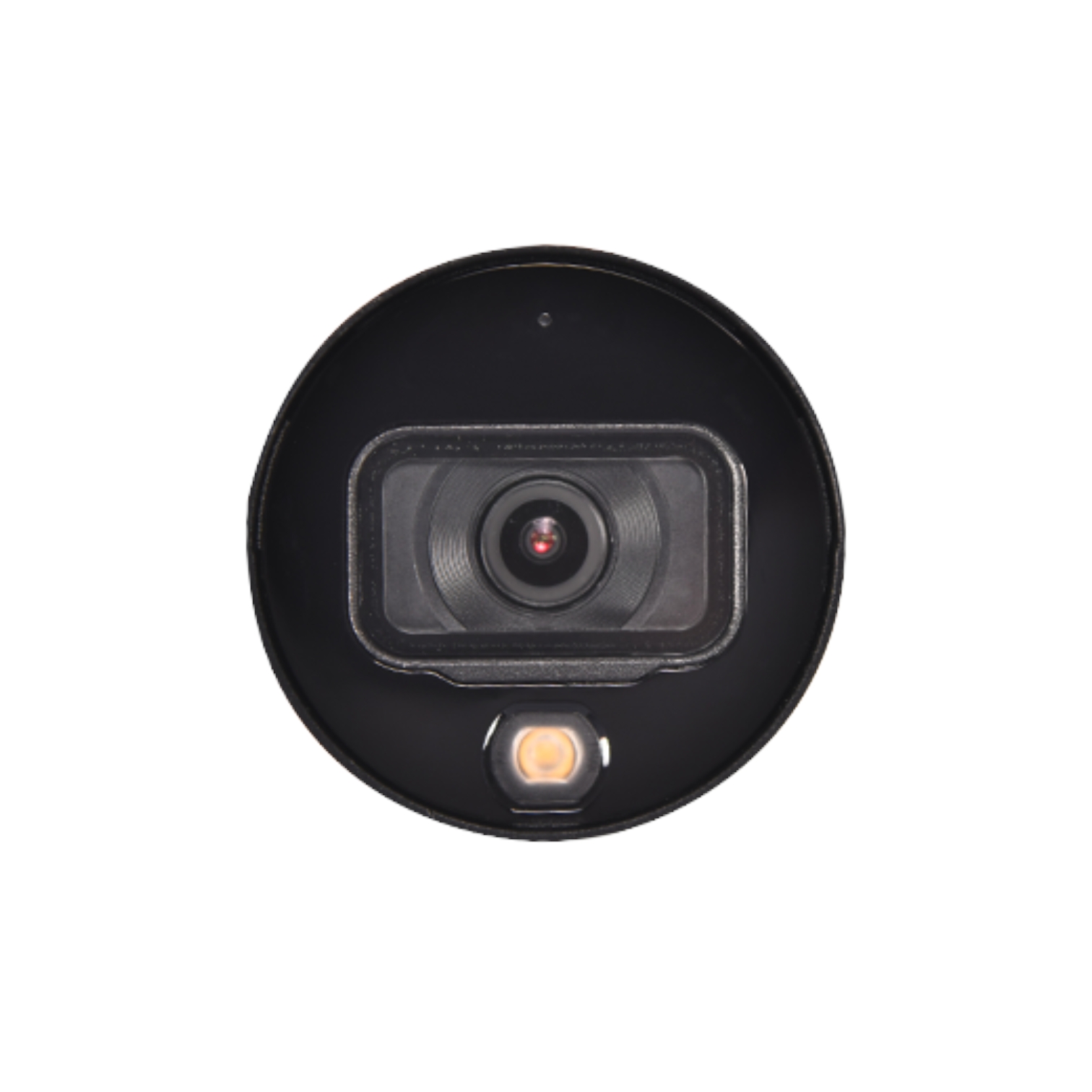

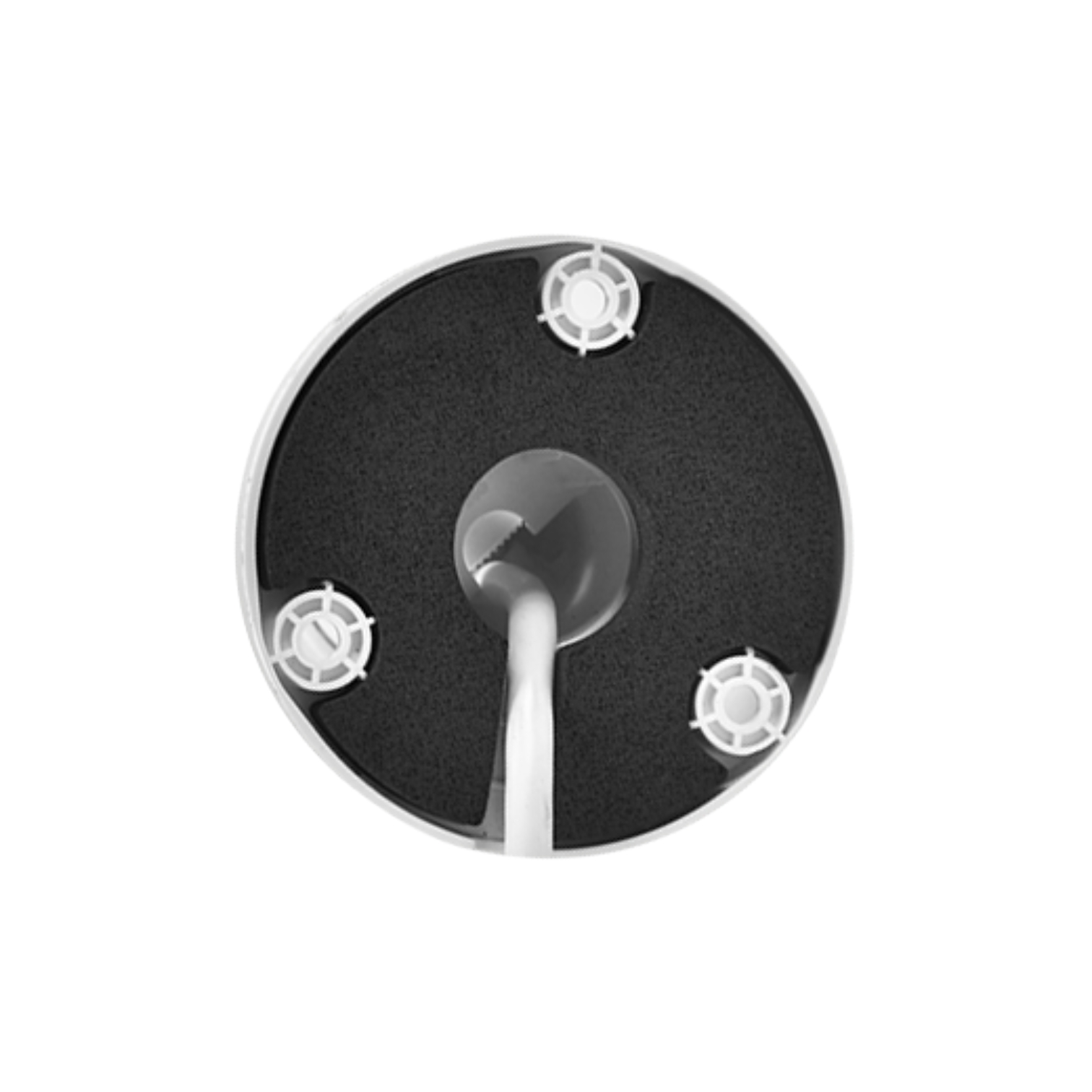

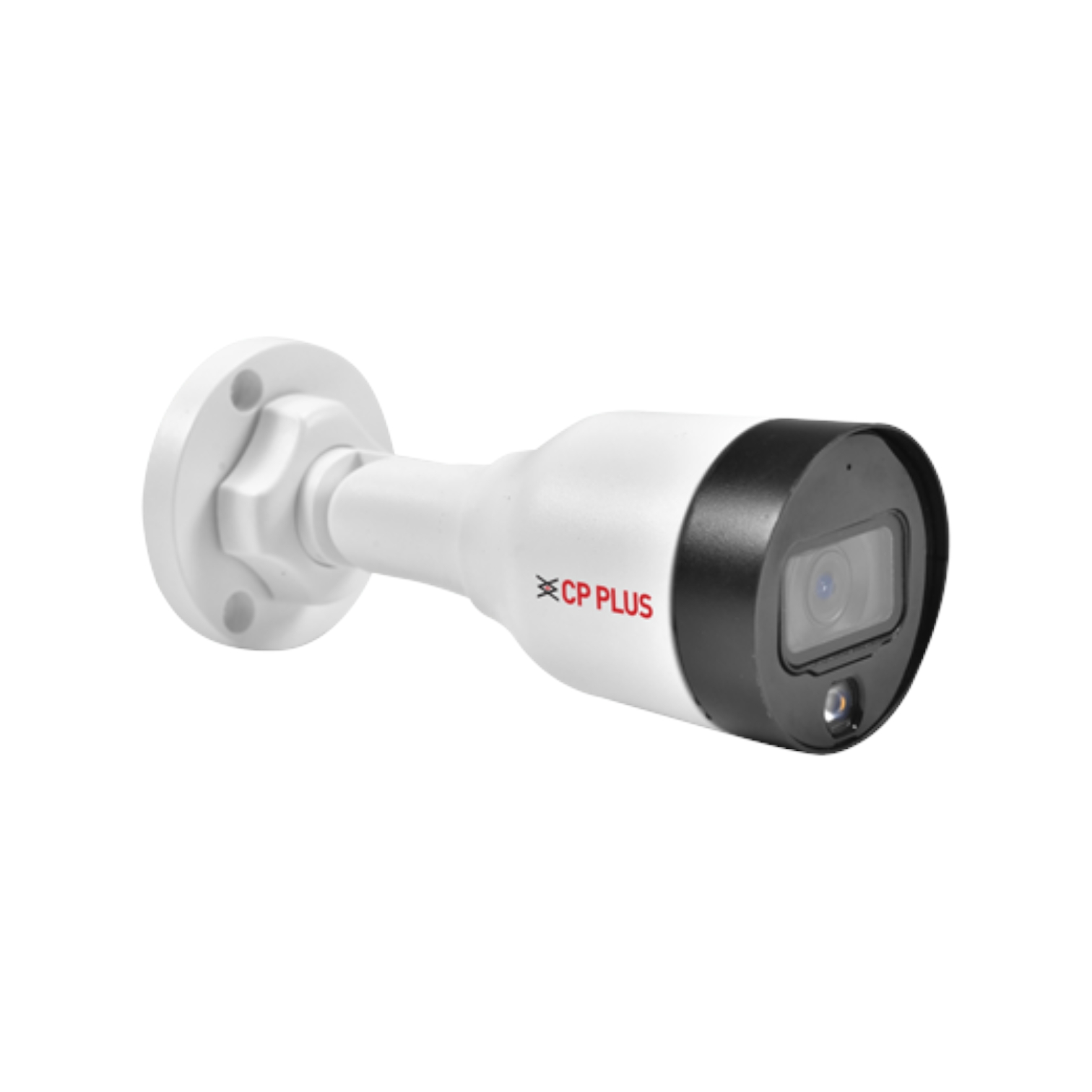

CP PLUS 4MP CP-UNC-TA41L3C-LQ BULLET IP CAMERA

Image Sensor 1/2.9” 4MP PS CMOS Image Sensor (0.8758 centimeters) Effective Pixels 2688(H) × 1520(V) Minimum Illumination 0.06 lux@F1.6 (Color, 30 IRE), 0.006 lux@F1.6 (B/W, 30 IRE), 0 lux (IR on) Angle Adjustment Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360° Shutter Speed Auto/Manual 1/3 s–1/100,000 s White Balance Auto, Natural, Street lamp, Outdoor, Manual, Regional custom RAM 128 MB ROM 128 MB DORI Distance Lens 3.6 mm: 85.4 m (Detect), 34.2 m (Observe), 17.1 m (Recognize), 8.5 m (Identify) Gain Control(AGC) Auto/Manual Lens Type Fixed-focal Max. Aperture F1.6 Lens Mount M12 Close Focus Distance 1.7 m Lens 3.6mm fixed Lens IR Number 1 (Multi-core (IR + warm) light) IR IR Range of 30 Mtr. Warm Light Warm Light Range of 30 Mtr. IR Control Auto, Manual Smart Illumination Support S/N Ratio >56dB Angle of view H: 78°, V: 40°, D: 93° Back Light Compensation BLC/ HLC/ DWDR Resolution 4MP (2688 x 1520)/ (2560 × 1440), 3MP (2304 × 1296), 2MP (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576/ 704 × 480), VGA (640 × 480), CIF (352 × 288/ 352 × 240) Video Compression Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by sub stream) Audio Built-in Mic Noise Reduction 3D NR Motion Detection OFF/ON (4 areas, rectangular) Video Format PAL/NTSC Stream Capability Triple stream Frame Rate Main stream: 4MP (2688 × 1520)@1-25/30fps/ (2560 × 1440)@1-25/30fps Sub stream 1: 720p (1280 × 720), D1 (704 × 576)@1–25fps/ (704 × 480)@1–30fps, VGA (640 × 480)@1-30fps, CIF (352 × 240)@1-30fps/ (352 × 288) @1-25fps Sub stream 2: D1 (704 × 576)@1–25fps/ (704 × 480)@1–30fps, VGA(640 × 480)@1-30fps, CIF (352 × 240)@1-30fps/ (352 × 288)@1-25fps Privacy Mask 4 areas ROI Support (4 areas) OSD Camera title, Date & Time Audio Compression G.711a, G.711Mu, PCM, G.726, AAC Bit Rate Control CBR/ VBR Bit Rate H.265: 3 kbps-6144 kbps, H.264: 8 kbps-6144 kbps Protocol SFTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, ICMP, IGMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), unicast, multicast Day/Night Auto(ICR)/Color/B/W SDK and API Support Ethernet RJ-45 (10/100 Base-T) Alarm Event Network disconnection, IP conflict, illegal access, Motion detection, Video tampering, Audio detection, Security exception, IMD (Intelligent motion detection Cyber Security AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot IMD (Intelligent motion detection) Support the classification and accurate detection of human and vehicle Mirror Function Support Smart search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos Iris Control Fixed Smart IR Support Image Rotation 4MP only support 0°/180° 2MP & lower will support 0°/90°180°/270° User/ Host 6 (Total bandwidth: 36 M) Browser IE, Chrome, Firefox Certificates ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report Power Source 12 VDC/ PoE (802.3af) Power Consumption Basic: 1.6 W (12 VDC), 2.0 W (PoE); Max. : 3.7 W (12 VDC), 4.7 W (PoE) (H.265 + intelligence on + DWDR+ warm light intensity) Weatherproof Standard IP67 Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F) Operating Humidity ≤95%(RH), non-condensing Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F Storage Humidity ≤95%(RH), non-condensing Dimensions 162.6 mm × 70 mm× 70 mm Casing Metal + Plastic Weight 220g
